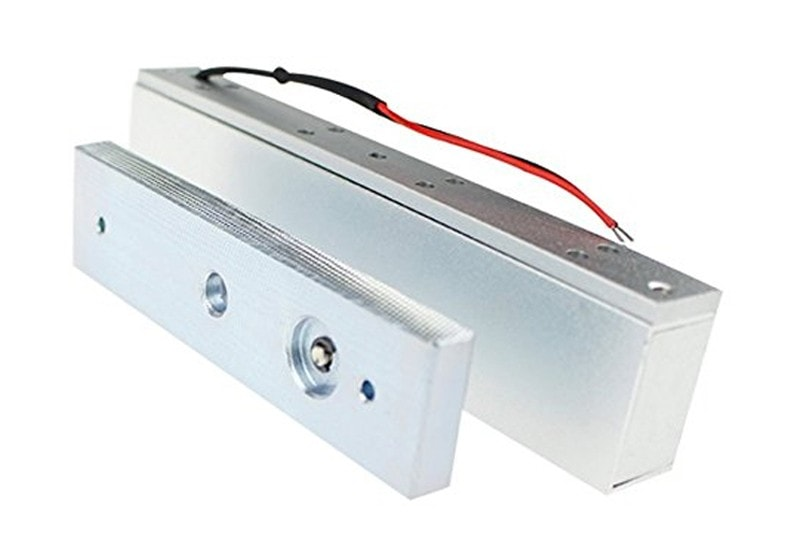

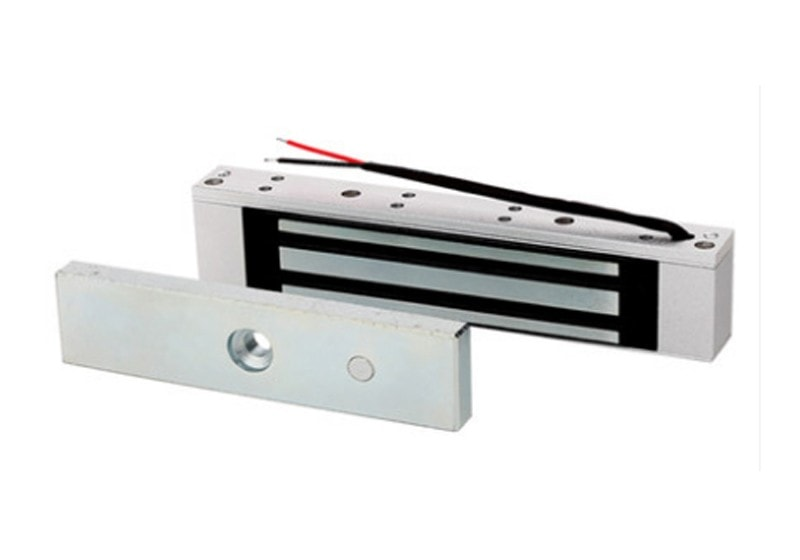

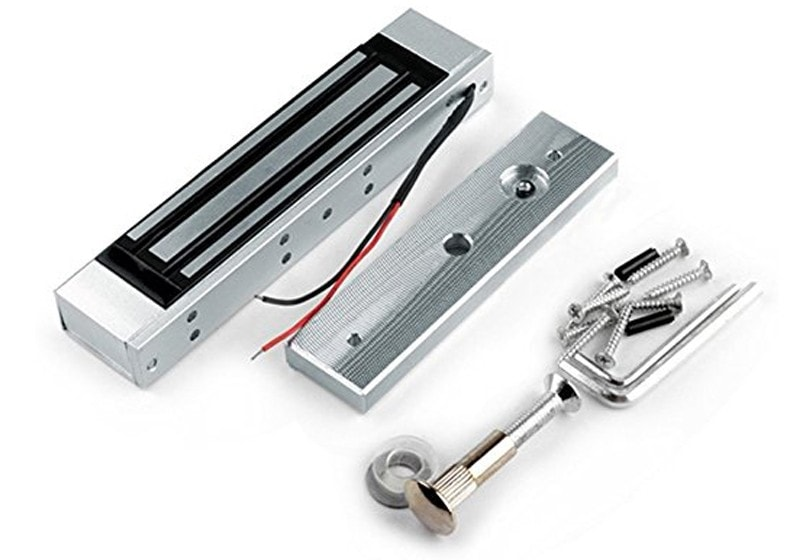

180KG Single door EM lock with Signal output

AED 0000

Part No.: EL-350ST

Availability: 10 items available

Qty:

Waterproof Electromagnetic lock ( 220lbs)



Fail Safe

Power on to lock

Lock dimensions

160L X 28W X 17H mm

Armature plate dimensions

130L X 28W X 8H mm

Holding force

110Kg(220Lbs)

Current Draw

12V200mA, 24V/100mA

Cover Finish

Anodized aluminum housing

Lock Finish

Zinc

Armature Plate Finish

Zinc

Weight

1.0 KG

Surface Temp

≤+20℃

Operating Temp

(-10)~+55℃(14-131F)

Humidity

0~95%(non-condensing)

Application

Wooden door , Glass door ,Metal door , Fireproof door

Waterproof Electromagnetic lock ( 220lbs)


Waterproof Electromagnetic lock ( 220lbs)
 Standard Carton boxUnit SizeGross Weight /pcsGross Weight /Carton
20pcs160L X 28W X 17H mm1KG20.5KG
